Galvanised Steel Drill Core Boxes

Metal type

Core Trays are designed for the mining and exploration industry to store and transport core samples.

Lake series core tray is designed according to standard wire-line rock core, its model include BQ.NQ.HQ.PQ,and we also have lid, block and tag as accessories to perfect drilling work. All our goods are produced by large injection machine, and A.B.C grade are separated according to different raw material, so client can choose the suitable core tray. Compare to ordinary type, Q core tray performs excellent under quite high/low temperature, and its age is much longer.

Model:NQ
Size:1070×385×55
Inseam Length:1m
The width of each slot :55mm
Length of Cores to hold:5m
Lattices Nos:5
Weight: 2.2kgs (approx.)

Model: HQ
Size: 1070×385×70
Inseam Length: 1m
The width of each slot : 69mm
Length of Cores to hold: 4m
Lattices Nos: 4
Weight: 2.4kgs (approx.)

Model: PQ
Size: 1070×385×93
Inseam Length: 1m
The width of each slot : 92mm
Length of Cores to hold: 3m
Lattices Nos: 3
Weight: 2.8kgs (approx.)

PQ drill core boxes

Galvanised Steel drill core boxes

1200mm Steel Drill Core Boxes

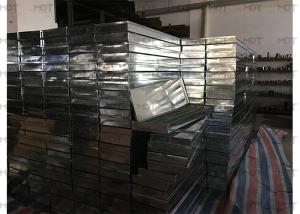

Galvanised Steel Drill Core Boxes Images
